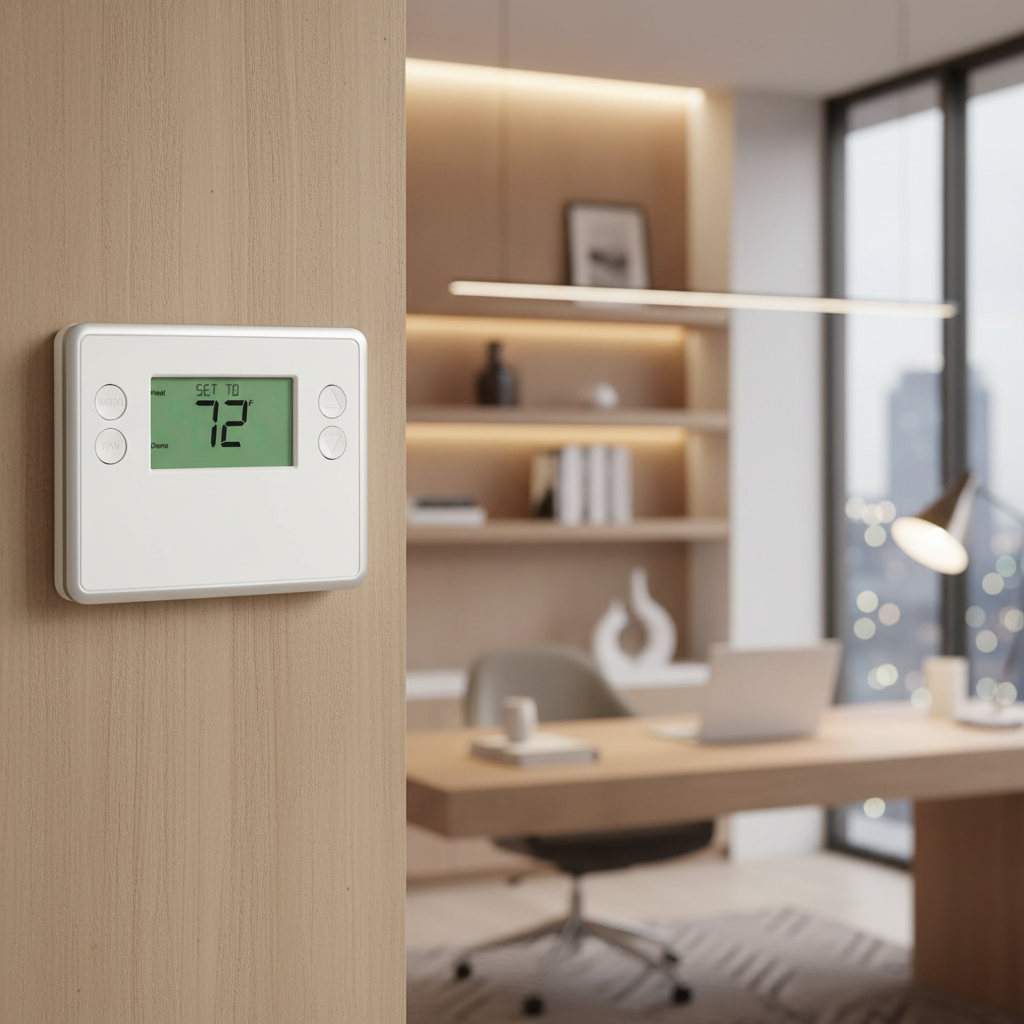

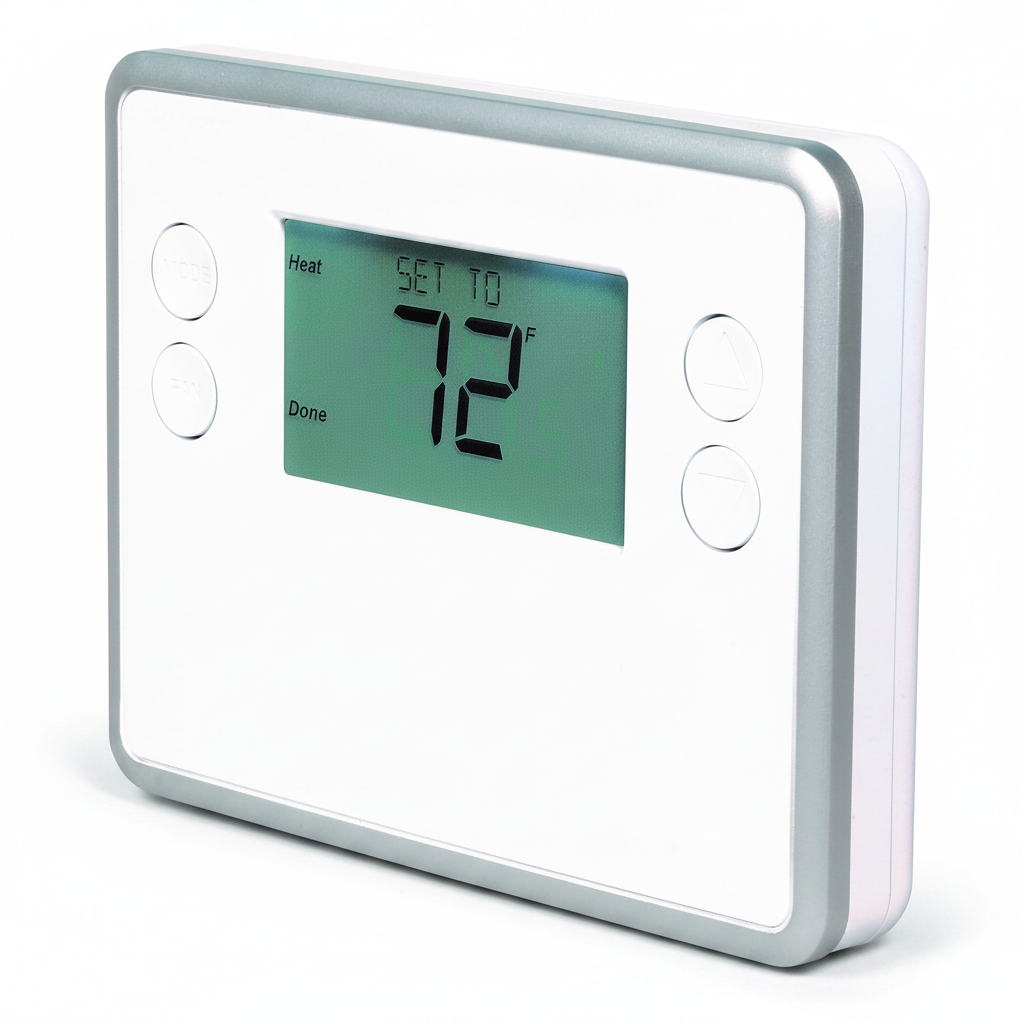

Smart Thermostat

Smart Thermostat is designed for connected temperature management across compatible Z-Wave systems. It can operate using four AA batteries for up to two years or connect to an HVAC system through a 24-volt AC C-wire. The thermostat supports standard and heat pump HVAC configurations, features a 7-character scrolling LCD display, and can be wall-mounted or installed on a single-gang junction box.

Specifications

• Model Name: GC-TBZ48

• Model Number: BRO-NTBZ48

• Product Type: Smart Thermostat

• Specific Use: Heat Pump

• Temperature Control: Cooling, Heating

• Connectivity Technology: Z-Wave

• Connectivity Protocol: Z-Wave

• Z-Wave Version: 4.5.5

• Display Type: LCD

• Control Type: Voice Control

• Control Method: Voice

• Power Source: Battery Powered or 24-volt AC C-wire

• Battery Requirement: 4 AA batteries

• Battery Life: Up to 2 years

• Mounting Type: Wall Mount or single-gang junction box

• Item Weight: 1.2 pounds

• Color: White

• Shape: Square

• Product Style: Smart

• Material Type: Plastic

• Certification: UL Listed

Features

• Z-Wave Compatibility: Connects with compatible Z-Wave hubs and systems.

• Voice Control: Supports Alexa voice control when used with a compatible hub and Alexa device.

• Z-Wave FLiRS Support: Supports Z-Wave FLiRS functionality.

• Standard HVAC Support: Supports standard HVAC systems with up to 2-stage heat and 2-stage cool.

• Heat Pump Support: Supports heat pump HVAC systems with up to 3-stage heat and 2-stage cool.

• Dual Power Options: Operates using four AA batteries or a 24-volt AC C-wire connection.

• Front-Loading Battery Compartment: Battery compartment is accessible from the front of the thermostat.

• Scrolling LCD Display: 7-character scrolling display provides thermostat information and programming visibility.

• Flexible Installation: Can be wall-mounted or installed on a single-gang junction box.

• Firmware Upgrades: Supports USB firmware upgrades.

Package Contents

• Included Component: Z-Wave Battery-Powered Smart Thermostat

• Batteries: 4 AA batteries included

Warranty

• Manufacturer Warranty: 1 year against manufacturer defects
